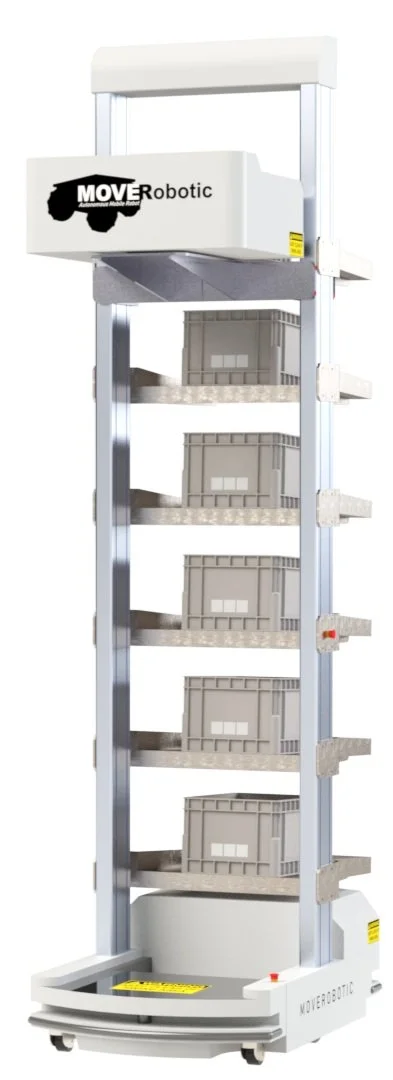

MK-ASRS-40
Indoor Automated Guided Vehicle
Introducing MoveR's cutting-edge innovation, the MK-ASRS-40: Your Ultimate Automated Guided Vehicle with Automated Storage & Retrieval System. Designed to redefine efficiency in warehouse operations, the MK-ASRS-40 is a breakthrough in autonomous mobile delivery robotics.
FEATURES
RFM Compatible
ROS Compatible
Customizable
Fast & Stable
Intelligent Sorting
Wide Picking Range
Multiple-Safety Protection
SPECIFICATION

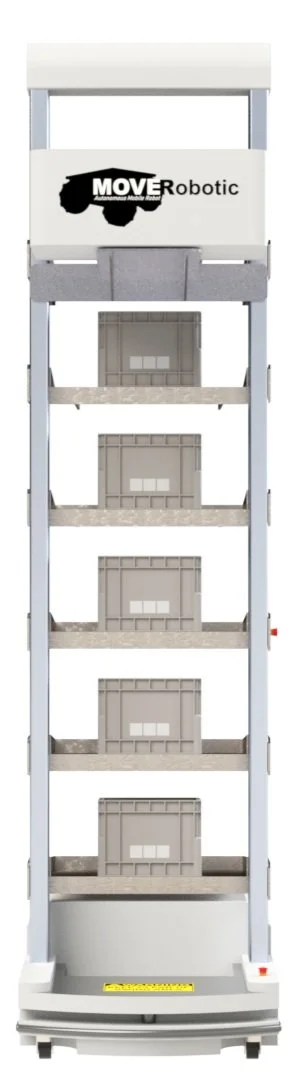

FRONT
SIDE
Platform
DRIVE SYSTEM
2 Wheel Differential Drive
MAXIMUM SPEED
6.5 km/h
SYSTEM VOLTAGE
24 V
COMMUNICATION
Network protocol - WiFi 5Ghz 802 11n
CHARGING TIME
30 Min
Navigation Sensors
CAMERA
Depth Camera
1,600mm(L) x1,000mm(W) x 4,330mm(H) **(the height is customisable up to 5,330mm)
EXTERNAL DIMENSION
up to 250 Kg
MAXIMUM PAYLOAD
50 mm
GROUND CLEARANCE
10 C - 30 C
OPERATING AMBIENT TEMPERATURE
4 hrs with load
OPERATING TIME
Opportunistic Charging
CHARGING METHOD
Indoor
WORKING ENVIROMENT
- 2 sets of 2D LIDAR with 360 degree coverage
- Measurement Range: Up to 100M
LIDAR
Safety Sensors
1 Front, 1 Rear, 1 Left, 1 Right
EMERGENCY STOP
1 Front, 1 Rear
COLLISION BUMBER
